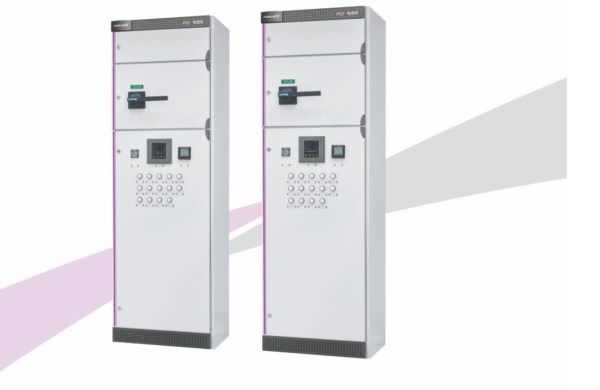

GGJ Series Reactive Power Compensation Cabinet

Operating Conditions: (same as GCK);

1. Ambient temperature –5℃~+40℃, 24h average ≤35℃
2. Relative humidity: ≤50% at 40℃, ≤90% at 20℃
3. Altitude ＜2000m
4. Storage/transport: –25℃~+55℃ (short‑term up to +70℃)

Features:
1. High harmonic absorption: 90% for 3rd/5th, 85% for 7th/11th
2. Max compensation capacity per unit: 405kvar
3. Auto/manual start/stop modes
4. Overcurrent, overheat, overvoltage protections
5. Displays 11 parameters: voltage, current, power factor, etc.
6. Compatible with GGD/GCK/GCS/MNS standard cabinets

Key Technical Parameters:
1.Rated frequency: 50Hz
2.Rated voltage: 380/400V
3.Max compensation per unit: 405kvar
4.Harmonic absorption: 3rd/5th ≥90%, 7th/11th ≥85%
5.Protections: overcurrent, overheat, overvoltage
6.Standards: GB/T14549, GB/T15576

Additional Information:

(Custom‑made to drawings, Production cycle of 15‑30 days)
